• Side Plate

    $74.99

    "Your Little Side Piece"

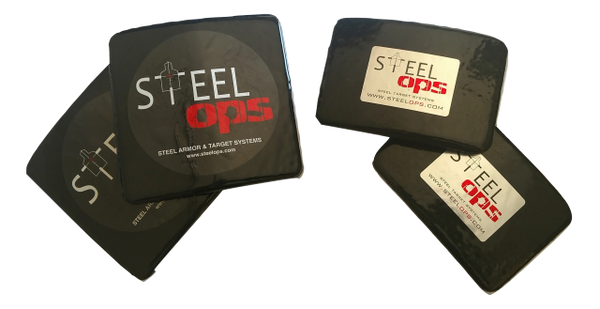

    The 6"x6" Side Plates are sold individually so be sure to select quantity 2 if you need both.  Each plate comes standard with a ~3/8" body curve and are made with 5mm AR-600 XP steel.  Each side plate has the same protection levels as our ArmisXP Plate or Pro Plate and exceeds Level III capabilities. With a full layer of our GT Advanced Ballistic Coating each plate is capable of encapsulating 99% of bullet fragments from Steel Core 5.56 at only 10ft!  We don't offer "Base Coats" or "Build Up Coats" because all of our armor receives a full 200 mil coating. Our standard coating is the same thickness as other company's "Build-Up Coats".

    NOTE: As of 12-1-19 we have discontinued the 4"x6" side plates.
    These plates were originally designed for smaller side plate pouches which have become uncommon and thus no longer necessary.  Custom sized plates are still available with 4-6 week lead time. Please call our office for more information. 970-215-6969


    TESTED EFFECTIVE FOR NO PENETRATIONS:

    124 Grain 9mm FMJ & SHP @ 5ft

     55 Grain FMJ 5.56 @ 10ft

     62 Grain Steel Core 5.56 LAP (Green Tip) @ 10ft

     123 Grain Lead Core 7.62x39 @ 10ft

     148 Grain Lead Core 7.62x51 (.308) @ 50ft


    SPECIFICATIONS

    6" x 6"

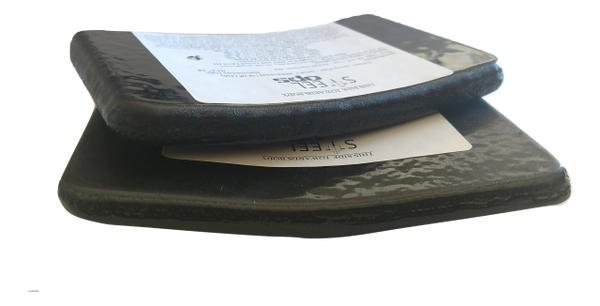

    FULL Ballistic Coating, AR-600 Steel Panel, ~3/8" body curve, Finished thickness of ~7/16"

    ​Weight: 2.4lbs (+/- 5%)

    Rating: III+ (Plate is Certified for NIJ 0108.01 Level III and special threat rated "+" for M193 and M855)

    Coating Specs: Strikeface ~200 mils, Backside ~63 mils

    CLICK HERE TO DOWNLOAD THE BODY ARMOR USER MANUAL


    IMPORTANT NOTICE ON BODY ARMOR PRODUCTS:
    In an effort to continually improve our quality control and deliver a more thorough product all armor plates manufactured after January 1st, 2018 will have a "core test sample point" on the back of the plate. This sample point will look like a small 1/8" hole in the coating on the backside of the plate located within a square on the label. This is not a hole in the steel and you will be able to see raw steel inside. This is not a flaw and this hole is intentional.  This sample point is part of an exhaustive quality control process to ensure that our coating, the steel, and the bonding properties between the two are correct.  Although the coating does not entirely envelope the plate, this sample point does not in any way impact the durability, stopping power, fragmentation control, or overall effectiveness.  This is simply for us to ensure that these plates are being made to our rigorous specifications.  We are proud that we have never once had to issue a recall and this is one more way to guarantee that will continue.  Should you ever find a flaw in the coating outside of the designated "core test sample point" box, please let us know. For any questions or concerns please contact our office at 970-215-6969 or by clicking here

    IMPORTANT NOTICE ON BODY ARMOR FOR NON-U.S. CUSTOMERS:
    Steel Ops body armor is regulated by the Office of Export Enforcement and is subject to Export Commodity Control Number 1A613 d.2 referenced in Part 774 of U.S. Commerce Control List.  Shipments outside the US will require additional fee's and qualifications. All International orders may be subject to denial or refund at Steel Ops' discretion. Waivers and Licensing are possible for certain shipments. Please contact our office prior to placing an international order otherwise your order may be canceled and or delayed.
